一般选择
OPEN: 开式
ZZ：双面 防尘盖
2RS：双面 接触密封圈

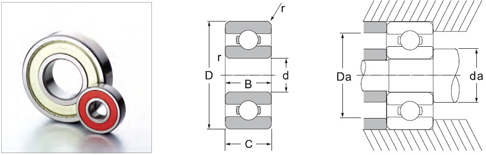

公制63系列深沟球轴承
适用所有密封结构
|
轴承 |
主要尺寸 |
额定基本负荷 |
极限转速 |
装球数 |
重量 |
|||||||||||||||
|
d |
D |
B,C |
Cr |
Cor |
脂 |
油 |
球数 |
尺寸 |
Ibs |
kg |
||||||||||
|
mm |
inch |
mm |
inch |
mm |
inch |
|||||||||||||||
|
635 |
5 |
0.1969 |
19 |
0.7480 |
6 |
0.2362 |
2.340 |
0.950 |
34000 |
42000 |
9 |
2.381 |
0.0242 |
0.0110 |
||||||
|
636 |
6 |
0.2362 |
22 |
0.8661 |
7 |
0.8661 |
2.550 |
1.370 |
32000 |
38000 |
7 |
3.696 |
0.0308 |
0.0140 |
||||||
|
637 |
7 |
0.2756 |
26 |
1.0236 |
9 |
0.3543 |
3.500 |
2.780 |
30000 |
36000 |
7 |
4.763 |
0.0550 |
0.0250 |
||||||
|
638 |
8 |
0.3149 |
28 |
1.1024 |
9 |
0.3543 |
3.540 |
1.990 |
28000 |
32000 |
7 |
4.763 |
0.0638 |
0.0290 |
||||||
|
639 |
9 |
0.3543 |
30 |
1.1811 |
10 |
0.3937 |
3.930 |
2.230 |
25000 |
30000 |
8 |
4.763 |
0.0792 |
0.0360 |
||||||
|
6300 |
10 |
0.3937 |
35 |
1.3780 |
11 |
0.4331 |
7.650 |
3.470 |
23000 |
27000 |
7 |
6.350 |
0.1188 |
0.0540 |
||||||
|
6301 |
12 |
0.4724 |
37 |
1.4567 |
12 |
0.4724 |
7.690 |
3.500 |
21000 |
25000 |
7 |
6.350 |
0.1298 |
0.0590 |
||||||
|
6302 |
15 |
0.5906 |
42 |
1.6535 |
13 |
0.5118 |
11.450 |
5.430 |
19000 |
22000 |
7 |
7.938 |
0.1804 |
0.0820 |
||||||
|
6303 |
17 |
0.6693 |
47 |
1.8504 |
14 |
0.5512 |
13.580 |
6.580 |
16000 |
19000 |
7 |
8.731 |
0.2486 |
0.1130 |
||||||
|
6304 |
20 |
0.7874 |
52 |
2.0472 |
15 |
0.5906 |
15.940 |
7.880 |
14000 |
17500 |
7 |
9.525 |
0.3124 |
0.1420 |
||||||
|
6305 |
25 |
0.9843 |
62 |
2.4409 |
17 |
0.6693 |
22.410 |
11.510 |
12000 |
14000 |
7 |
11.509 |
0.4972 |
0.2260 |
||||||
|
6306 |
30 |
1.1811 |
72 |
2.8346 |
19 |
0.7480 |
27.030 |
15.260 |
10000 |
12000 |
8 |
12.000 |
0.7678 |
0.3490 |
||||||
|
6307 |
35 |
1.378 |
80 |
3.1496 |
21 |
0.8268 |
33.390 |
19.290 |
8800 |
10000 |
8 |
13.494 |
1.0120 |
0.4600 |
||||||
|
6308 |
40 |
1.5748 |
90 |
3.5433 |
23 |
0.9055 |
40.760 |
24.010 |
7800 |
9200 |
8 |
15.081 |
1.4190 |
0.6450 |
||||||
